MONOCRYSTALLINE PHOTOVOLTAIC MODULE 530Wp - 550Wp
TECHNICAL DATA
Model No. |
Module Efficiency | Pmax (W) | Vm (V) | Im (A) | Voc (V) | Isc (A) | Power Tolerance |
CETC-530M(H)/144 |
20.74% |
530 |
41.35 |
12.83 |
49.20 |
13.72 |
0% to +3% |
CETC-535M(H)/144 |
20.93% |
535 |
41.50 |
12.90 |
49.35 |
13.78 |
0% to +3% |
CETC-540M(H)/144 |
21.13% |
540 |
41.65 |
12.97 |
49.50 |
13.85 |
0% to +3% |
CETC-545M(H)/144 |
21.32% |
545 |
41.80 |
13.04 |
49.65 |
13.92 |
0% to +3% |
CETC-550M(H)/144 |
21.52% |
550 |
41.95 |
13.12 |
49.80 |
13.98 |
0% to +3% |
Dimensions: |
2278 x 1133 x 35 mm |
||||||
Weight: |
27 kg |
||||||
Frame: |
Anodized aluminum alloy |
||||||
Front Glass: |
3.2 mm ultra-white, AR-coated tempered glass |
||||||
Encapsulant: |
EVA |
||||||
Backsheet: |
TPT |
||||||
Type of Solar Cell: |
Monocrystalline PERC, 182 x 182 mm |
||||||
No. of Cells: |
144 (2 x 6 x 12) in series |
||||||
Junction Box: |
IP68 rated (3 bypass diodes) |
||||||
Cables: |
Cable diameter 4.0 mm², lengths (-) 200 mm and (+) 300 mm |
||||||
Connectors: |
MC Plug Type IV connectors |
||||||
Normal Operating Cell Temperature (NOCT): |
45±2°C |
||||||
Temperature Coefficient of Pmax: |
-0.35%/ºC |
||||||
Temperature Coefficient of Voc: |
-0.28%/ºC |
||||||
Temperature Coefficient of Isc: |
0.048%/ºC |
||||||
Maximum System Voltage: |
1500 VDC (IEC) |
||||||
| Series Fuse Rating: | 25 A |
||||||
| Maximum Reverse Current: | Series fuse rating multiplied by 1.35 |
||||||
Operating Temperature: |
-40ºC to +85ºC |
||||||
Hail Safety Impact Velocity: |
25 mm at 23 m/s |
||||||
Fire Safety Classification (IEC 61730): |
Class C |
||||||
Static Load Wind / Snow: |
2400 Pa / 5400 Pa |
||||||
Palletized Packaging: |
31 pcs per pallet |
||||||
| Electrical Characteristics: measurement tolerance of ±3%. | |||||||
Solar PV Junction Box

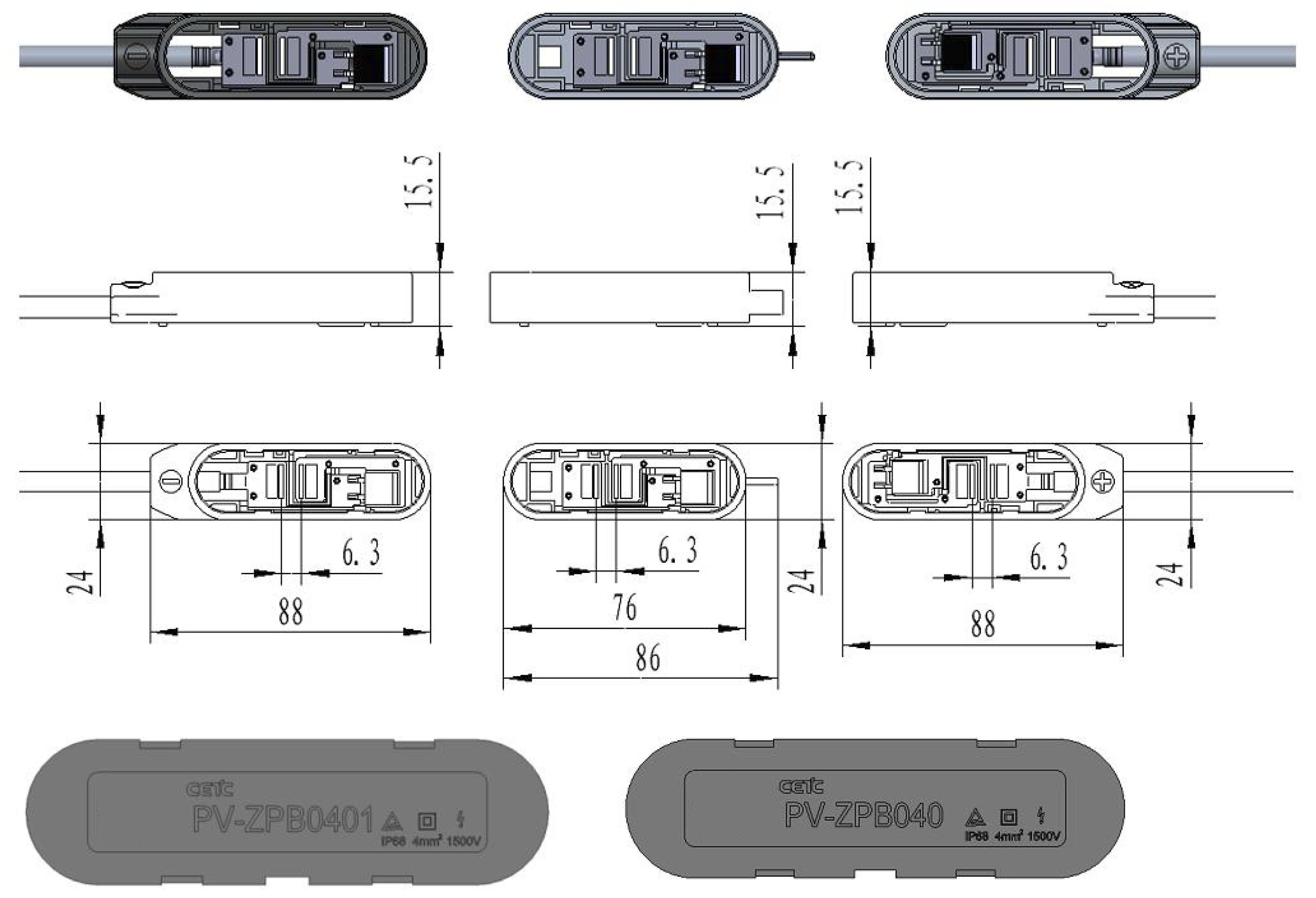

1. PV-ZPB040x Series Trio PV Junction Box: 3-Split potting junction box, suitable for bifacial double-glass solar panels.
Model |
PV-ZPB0401 | PV-ZPB040 |
Ribbon Spacing |
6.3mm |
6.3mm |
Dimensions (LxWxH) |
88mm * 24mm * 15.5mm |
86mm * 24mm * 15.5mm |
Diode |
GF3045 (Dual-core) |
GF3045 (Single-core) |
Cable Type |
1 x 4mm² |
1 x 4mm² |
Operating Temperature |
-40°C ~ +85°C |
-40°C ~ +85°C |
Storage Temperature |
-40°C ~ +85°C |
-40°C ~ +85°C |
IP Rating |
IP68 (1m, 1h) / IP65 |
IP68 (1m, 1h) / IP65 |
Sealing Method |
Potting |
Potting |
Flame-resistant Rating |
5VB |
5VB |
Connection (to Ribbon) |
Soldering |
Soldering |
Rated Current |
25A |
20.5A |
Maximum System Voltage |
1500VDC |
1500VDC |
Potting Volume |
30g |
30g |

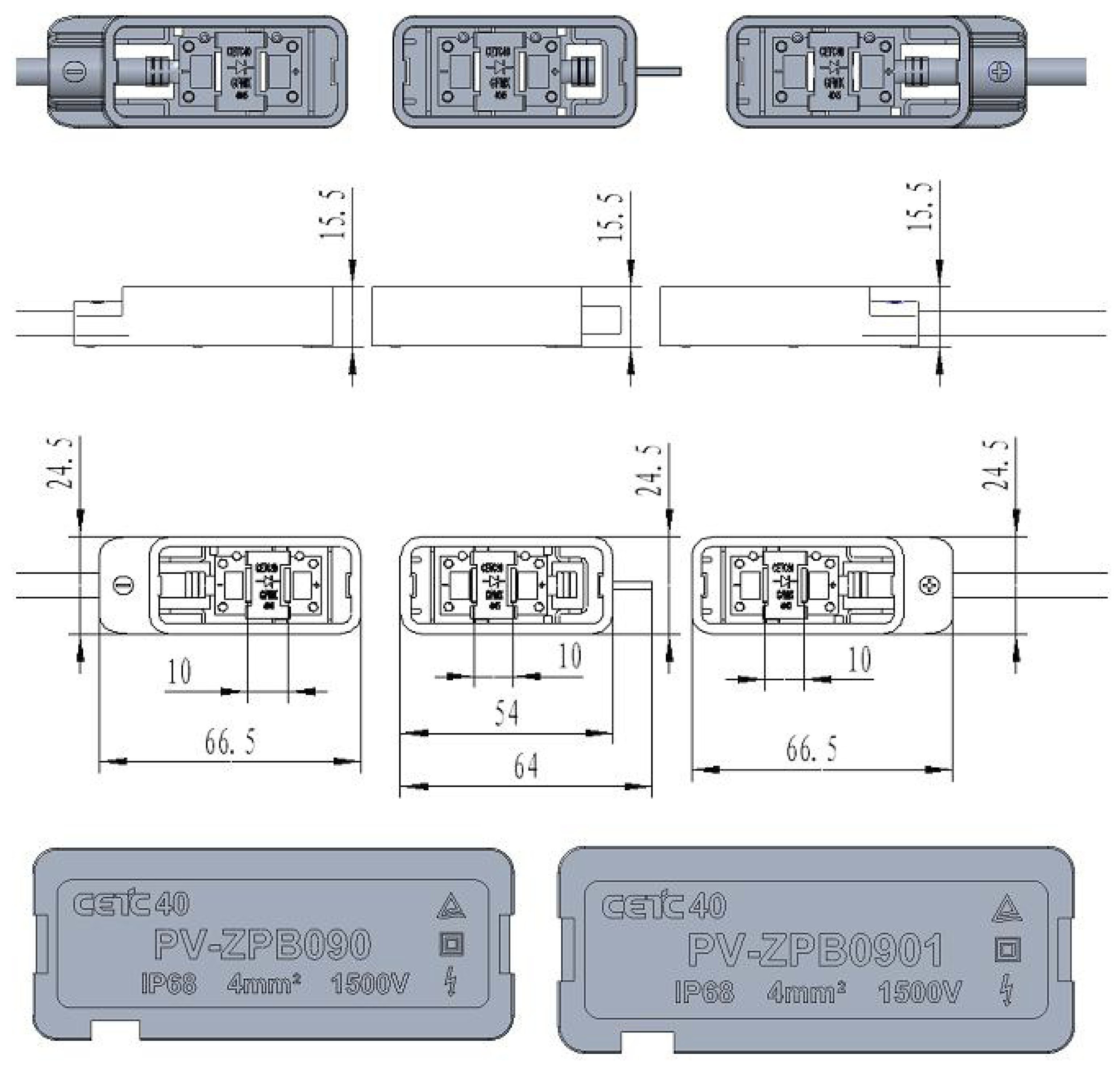

2. PV-ZPB090x Series Trio PV Junction Box: 3-Split potting junction box, suitable for bifacial double-glass solar panels.
Model |
PV-ZPB0901 | PV-ZPB090 |
Ribbon Spacing |
10mm |
10mm |
Dimensions (LxWxH) |
66.5mm * 24.5mm * 15.5mm |
64mm * 24.5mm * 15.5mm |
Diode |
GFMK6045 |
GFMK4045 |
Cable Type |
1 x 4mm² |
1 x 4mm² |
Operating Temperature |
-40°C ~ +85°C |
-40°C ~ +85°C |
Storage Temperature |
-40°C ~ +85°C |
-40°C ~ +85°C |
IP Rating |
IP68 (1m, 1h) / IP65 |
IP68 (1m, 1h) / IP65 |
Sealing Method |
Potting |
Potting |
Flame-resistant Rating |
5VB |
5VB |
Connection (to Ribbon) |
Soldering |
Soldering |
Rated Current |
30A |
25A |
Maximum System Voltage |
1500VDC |
1500VDC |
Potting Volume |
22.3g |
22.3g |

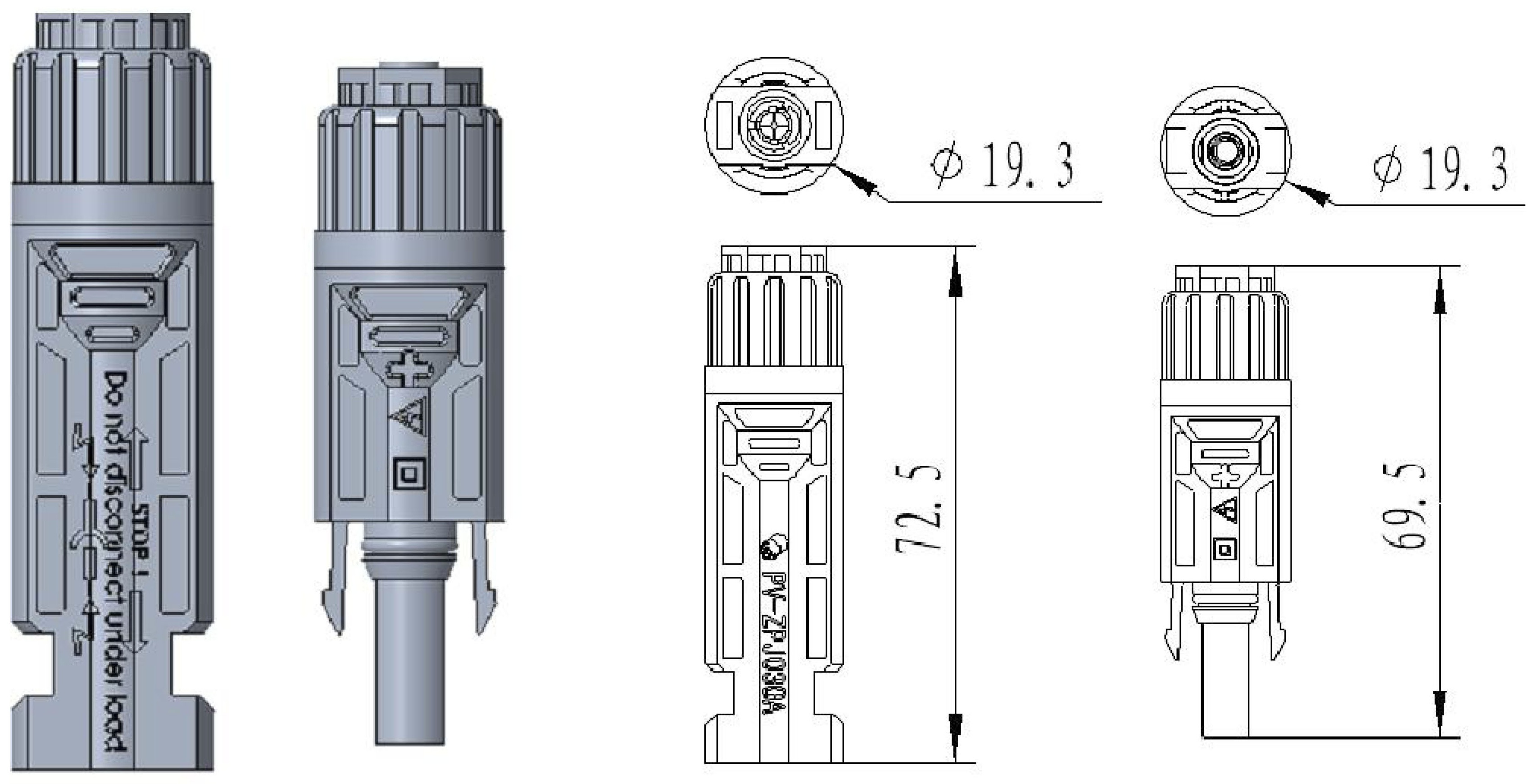

Solar PV MC4 Connector
Model |
PV-ZPJ030A |
Rated Voltage |
1500VDC |
Rated Current |
38A |
Cable Type |
1 x 4mm² / 1 x 6mm² |
Safety Class |
II |
IP Rating |
IP68 (1m, 1h) / IP65 |
Contact Resistance |
< 0.5mΩ |
Application Class |
Class A |
Operating Temperature |
-40°C ~ +85°C |
Storage Temperature |
-40°C ~ +85°C |
Pollution Degree |
2 |
Flame Rating |
UL 94 V-0 |
